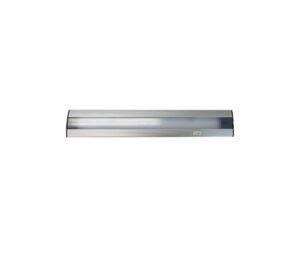

24″ LED Task Light w/ Internal Motion Sensor
TLN-LED-S-1Downloads
Whether it is to retrofit an existing station, or a new install, Open Plan Systems maintains the support of sustainability through our LED Task Light offering. Each light runs at approximately 13 watts, which computes tremendous energy savings for comparable incandescent and fluorescent lights. LEDs have been proven to last longer and use less energy than their outdated fluorescent brothers. Our LED task light attaches to the underside of a flipper door unit or shelf using magnets for easy adjustment.
Available in silver aluminum finish. 18” and 24” options are available. 24” includes a built-in motion sensor (can be toggled on/off). Lights can also be daisy-chained together. Includes 8′ cord.
Options
| SKU | Description |
| TLN-LED-12-S | 12” connection cord, adjoining 24” & 30” shelves |
| TLN-LED-24-S | 24” connection cord, adjoining 36” & 48” shelves |
| TLN-LED-36-S | 36” connection cord, adjoining 48” & 60” shelves |
| TLCM | Task Light cord manager – 4′ length – BU |
Our LED Task Lights have new SKUs and connection cords. Any light with a “-1” in the SKU is only compatible with our new 12, 24 and 36” connection cords. Previous LED Task Light models (without the “-1” are only compatible with our 19” connection cord (TLN-LED-19-S). Please contact your CSR with any questions.
Specifications
| Sizes | 24″ | Built-In Motion Sensor | 24″ Light Only |
| Wattage per fixture | 13W (24″) | Dimensions (in) | 24″ L x 3″ W x 1″ H (24″) |
| Lumens per fixture (18″) | 580 Lm-6000k | Lux | 260 – 6000k |
| Lumens per fixture (24″) | 680 Lm-6000k | Lamp Life | ~50,000 hours (18″) ~30,000 hours (24″) |
| Efficacy | 50 Lm/W | Maximum Run (chaining) | 42 fixtures |
| Color Temperature | 6000k – White | CRI | >75 |
| Voltage | 120V AC | Housing | Aluminum |
| Operating Temp | -22ºF to 185ºF | Environment | Indoor use, dry location |
| Beam Angle | 120º | Mounting | Magnetic |
